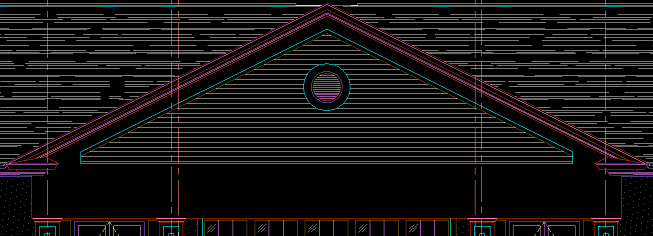

I am creating a gable end wall and have become stuck on how I can accomplish it (see the attached picture for the CAD drawing). I started by creating a wall and attempting to cut an opening and infill with a different wall type. Problem is, I can't figure out how to cut a wall with a geometric shape. I can only find "wall opening" which only does a rectangle. The siding area is set back from the trim about 3" and contains a louver. Should I create the wall as the siding wall set back and apply trim to the face? That doesn't seem right though, Any suggestions on how to get this right?
|
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Mon, Feb 2, 2009
16 Posts No Rating |
Here is the elevation noted above
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Mon, Feb 2, 2009
16 Posts No Rating |
Didn't realize the image was too large...
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |

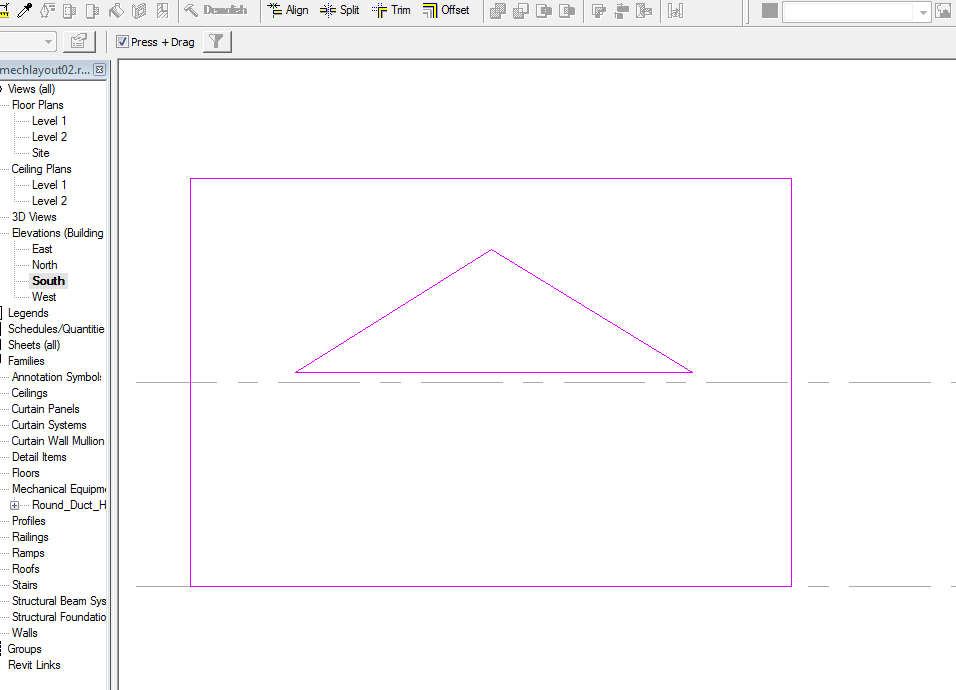

"Problem is, I can't figure out how to cut a wall with a geometric shape. I can only find "wall opening" which only does a rectangle." Pick in the wall and in the options bar You have "Edit Profile" then draw inside the lines magenta new lines with thew shape you want for your wall...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |

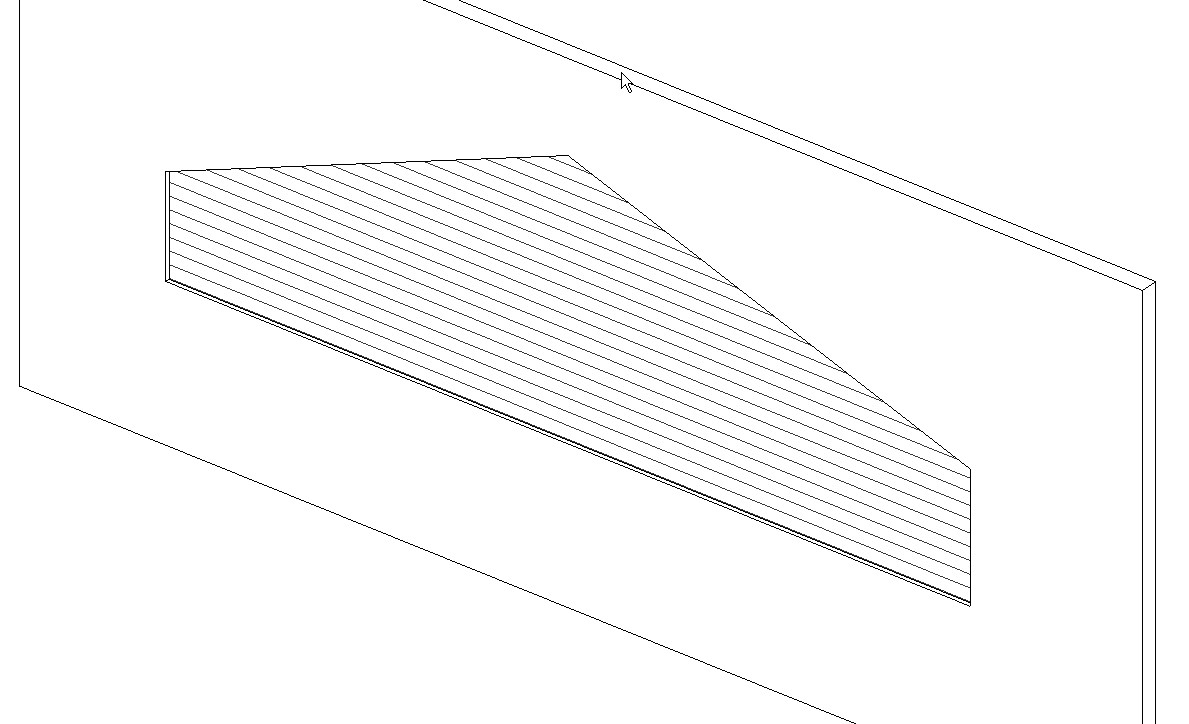

Look at my attached jpg. I have a base wall ... I then created an in-place family, wall category, that is a void which cuts the wall to the depth I want....then I simply used my paint bucket to put the finish in the recessed area.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Jul 22, 2008
12 Posts No Rating |
Since the gable contains a louver, I would think that the best way to do this would be with a family (ie, a window family constructed like a louver). You could modify it so that it cuts the way that you want, and it wouldn't necessarily need to be parametric.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
The whole area is not a louver so no - I don't think I would do that. The louver would be a stock louver in the recessed area.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Mon, Feb 2, 2009
16 Posts No Rating |
Didn't realize the image was too large...
|
