Forums >> Revit Building >> Technical Support >> Help. I can't create this roof
|
|
|
active
Joined: Fri, Mar 28, 2008
35 Posts
No Rating |
Hi! I think I've been trying for more than 2 hours and I can't figure out how to create this roof: [img]http://xs136.xs.to/xs136/09064/roof792.jpg[/img] I've tried with lines defining slopes (which was the best option), then the arrows and the flash roof to use those extra options. Can someome tell me how to create it? Thanks a lot!!
|
This user is offline |
|
 |
|
|
|
active
Joined: Fri, Sep 7, 2007
738 Posts
 |

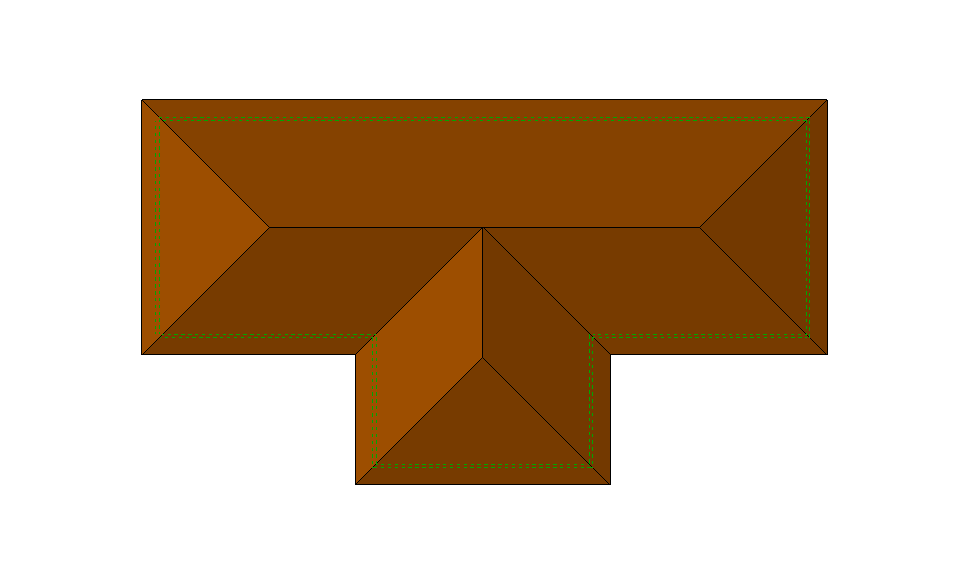

Hi alc112, you are talking about something like this???.....only one observation, your roof plan doesn't "match" with the elevation below....
-----------------------------------
“Learning never exhausts the mind.” — Leonardo Da Vinci
|
This user is offline |
|
|
|
active
Joined: Fri, Mar 28, 2008
35 Posts
No Rating |
YEs that's what I try to do. One roof is placed 60 cm upper than the other.
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 7, 2007
738 Posts
|

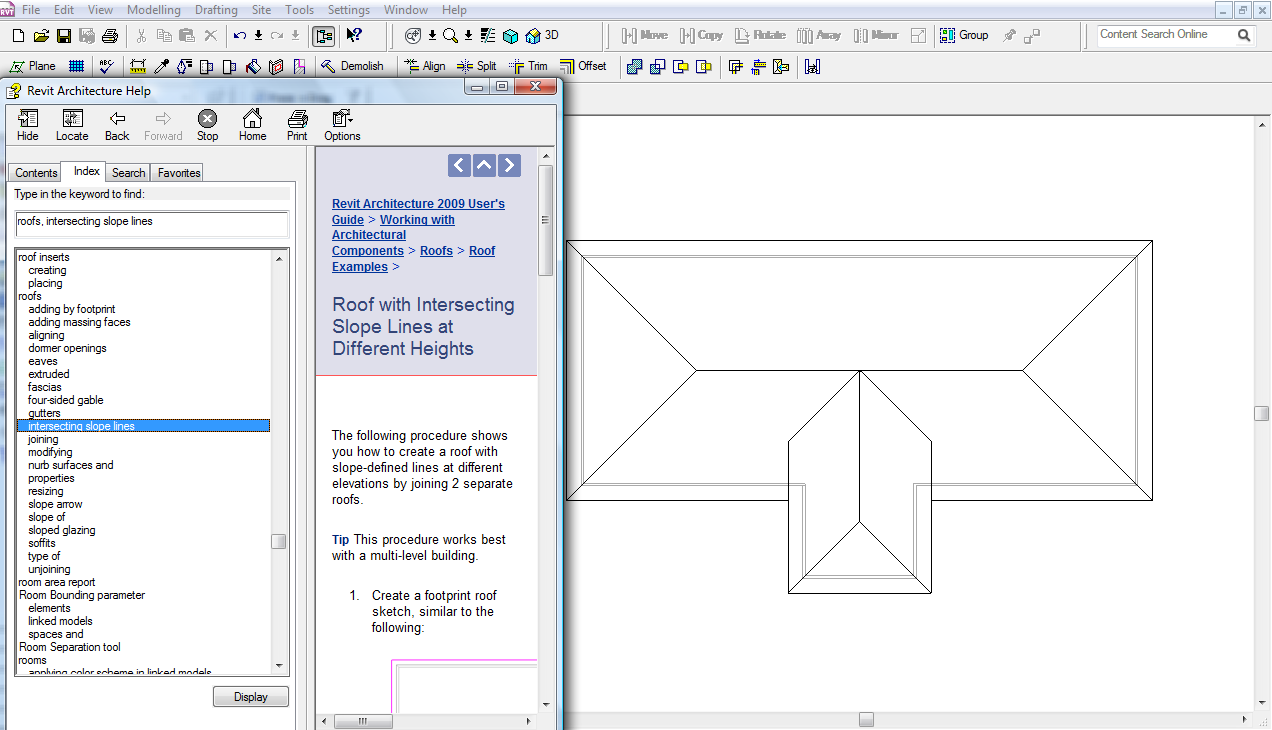

Hi alc112, have you read in the Revit help section: Roofs :Intersecting slope lines at different heights???....saludos hasta Argentina.....
Edited on: Thu, Feb 5, 2009 at 10:31:30 PM
-----------------------------------
“Learning never exhausts the mind.” — Leonardo Da Vinci
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |

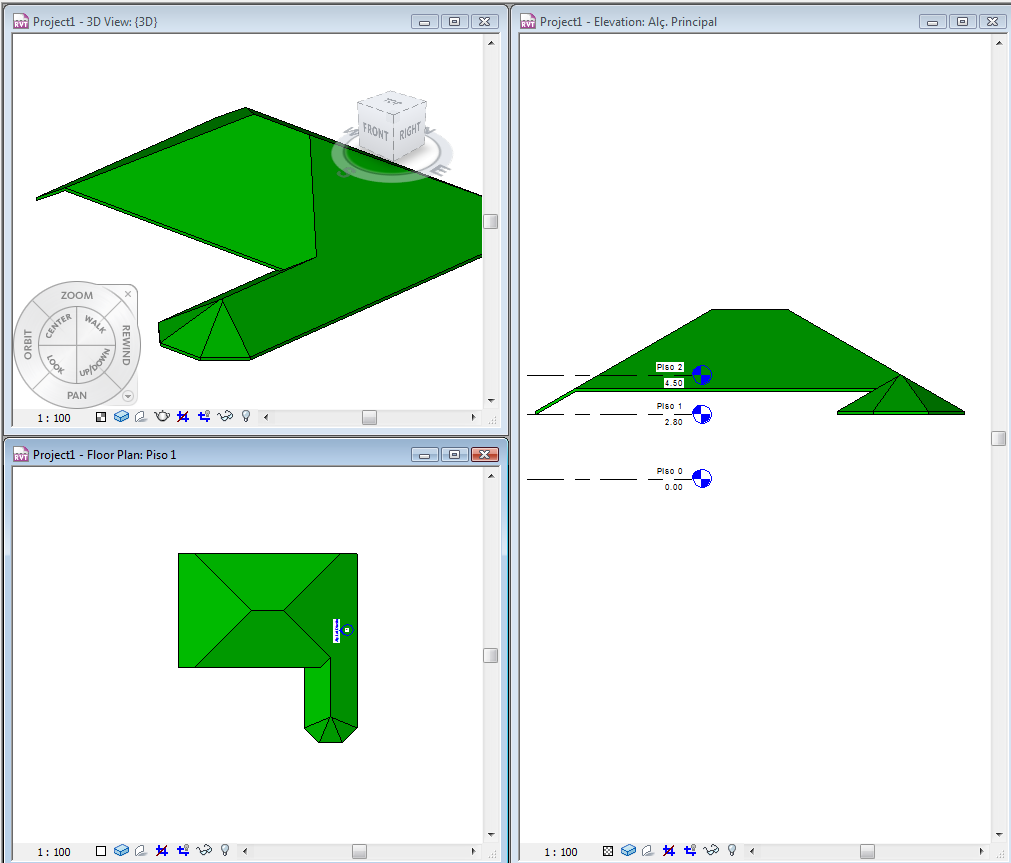

I created something similar using two different roofs and joining them. See image.
|
This user is offline |
View Website
|
|
|
active
Joined: Fri, Sep 7, 2007
738 Posts
|
Yeah, that's the way. BTW-interesting image Tim......
-----------------------------------
“Learning never exhausts the mind.” — Leonardo Da Vinci
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
Thanks for that Ernesto.
|
This user is offline |
View Website
|
|
|
active
Joined: Fri, Feb 6, 2009
9 Posts
No Rating |
I have a roof myself that has been giving me some difficulty. This project has two bearing heights (9'-4" & 12'-0" I attached a pdf of the original plans of this house. By the way I am using Revit '09 I am new to Revit and I am trying to teach myself. I have beed using CAD for years. Thanks for the help!!!
-----------------------------------
REVIT ARCHITECTURAL 2009 ~ Pat Cape Coral, FL. ·´¯`·.¸.·´¯`·.¸ >< ((((º> . ·´¯`·.¸ >< ((((º> |
This user is offline |
|
|
|
active
Joined: Fri, Sep 7, 2007
738 Posts
|
No file attached......
-----------------------------------
“Learning never exhausts the mind.” — Leonardo Da Vinci
|
This user is offline |
|
|
|
active
Joined: Fri, Feb 6, 2009
9 Posts
No Rating |
Ok one second I have to compress the file
Edited on: Fri, Feb 6, 2009 at 10:31:25 PM
-----------------------------------
REVIT ARCHITECTURAL 2009 ~ Pat Cape Coral, FL. ·´¯`·.¸.·´¯`·.¸ >< ((((º> . ·´¯`·.¸ >< ((((º> |
This user is offline |
|
|
|
|
|
active
Joined: Fri, Feb 6, 2009
9 Posts
No Rating |
Ok hopefully this will upload now
-----------------------------------
REVIT ARCHITECTURAL 2009 ~ Pat Cape Coral, FL. ·´¯`·.¸.·´¯`·.¸ >< ((((º> . ·´¯`·.¸ >< ((((º> |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

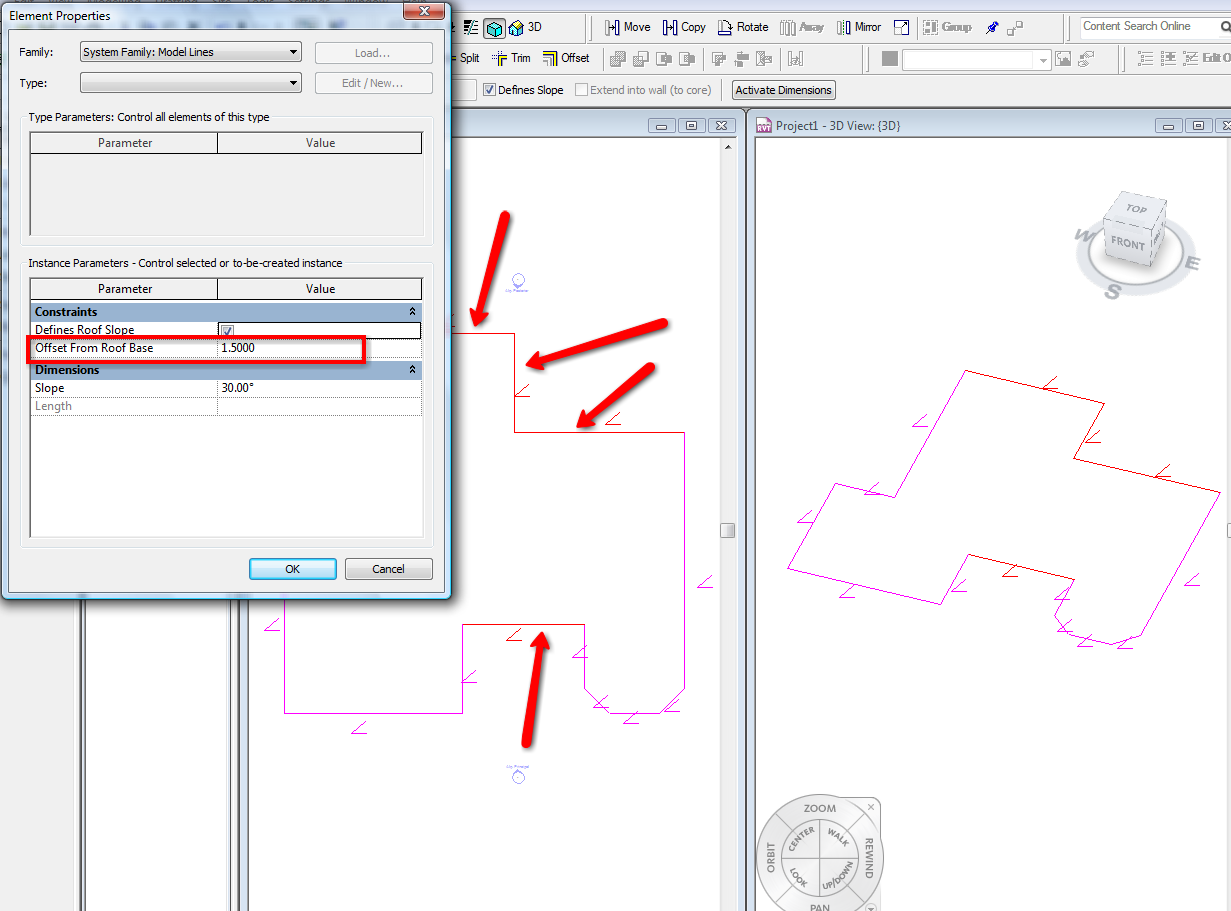

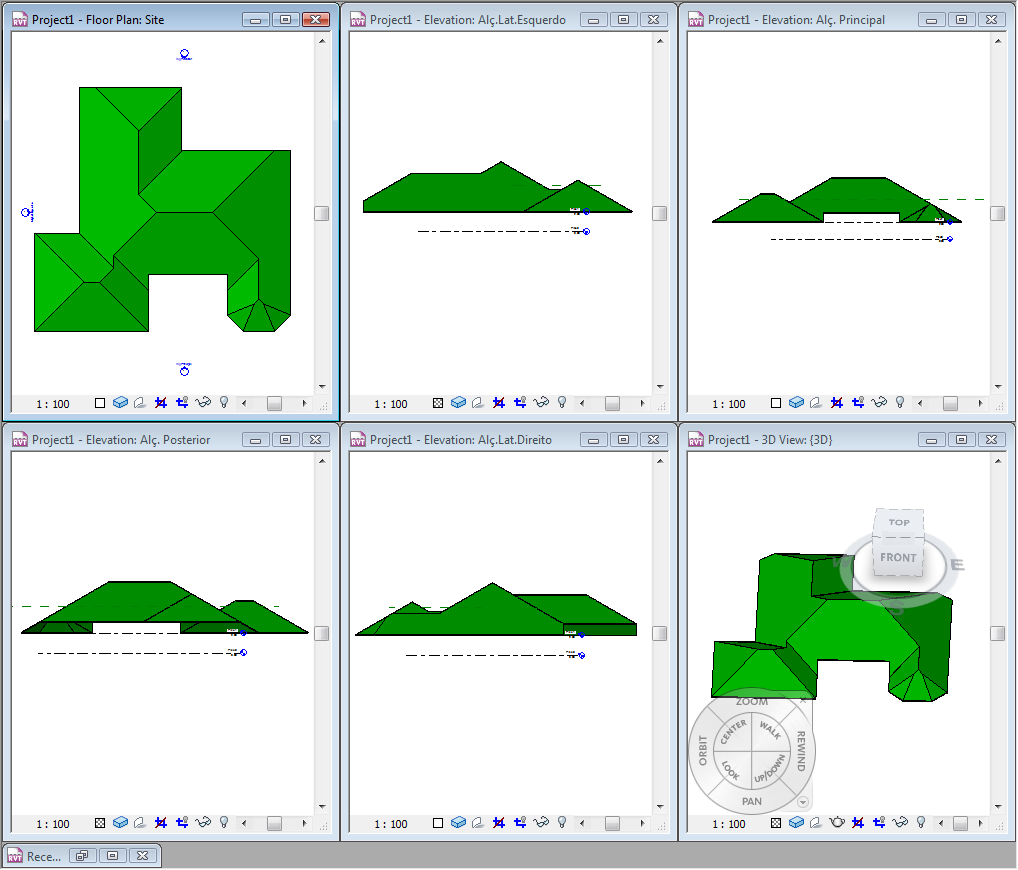

Do it in One Piece if you want or you can create several roofs and Join them....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Fri, Mar 28, 2008
35 Posts
No Rating |
I could create it with 2 separate roofs and then I used join geometry. I tried what Typhoon shows but that is not what I was looking for (Anyway, it's good to know)
|
This user is offline |
|
|
|
active
Joined: Fri, Feb 6, 2009
9 Posts
No Rating |
Thanks for the help Typhoon. I figured out how you did the roof so I am a lot closer. The only problem is the front overhang isn't exactly correct. I made a closeup of the overhang see attached.
-----------------------------------
REVIT ARCHITECTURAL 2009 ~ Pat Cape Coral, FL. ·´¯`·.¸.·´¯`·.¸ >< ((((º> . ·´¯`·.¸ >< ((((º> |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Just like I said before "or you can create several roofs and Join them...."
-----------------------------------
