Forums >> Revit Building >> Tips & Tricks >> roofs with different angle

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Dec 19, 2008 at 6:00:33 AM | roofs with different angle

#1

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes

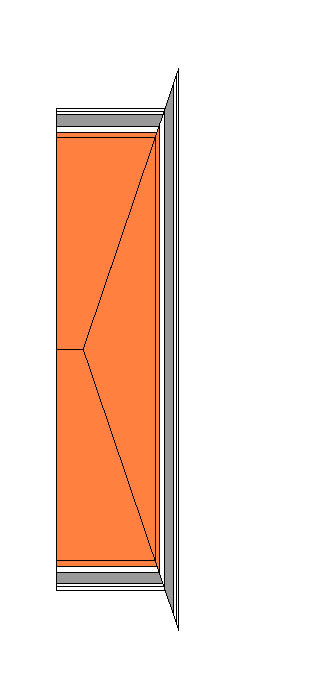

Hi, anyone got any tips or tricks on drawing this type op connection, ?



Kind regards,

D.



Attached Images


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Fri, Dec 19, 2008 at 6:10:39 AM | roofs with different angle

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hi, if that is a "Sweep", pick in the sweep go to Option menu and pick in "Change Return" then change the parameter to "Vertical" but write 45º, 60º "what ever"...





Edited on: Fri, Dec 19, 2008 at 6:11:48 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Dec 19, 2008 at 6:19:20 AM | roofs with different angle

#3

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


no those are two roofs with a different angle cutting in plannview

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Fri, Dec 19, 2008 at 6:24:24 AM | roofs with different angle

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Can you post some images in 3D view to check????




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Dec 19, 2008 at 6:39:10 AM | roofs with different angle

#5

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes

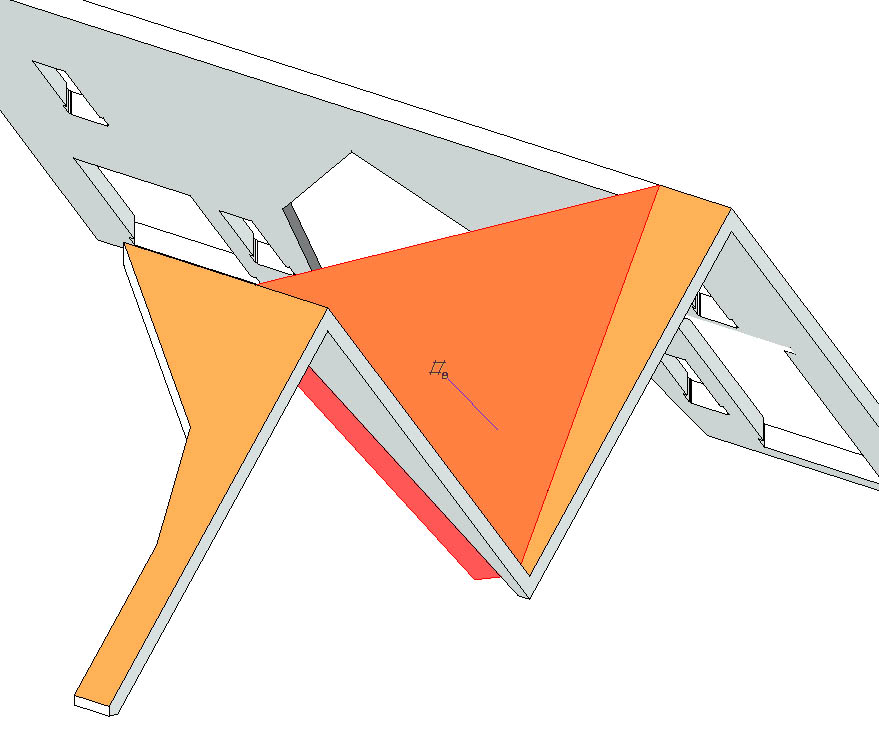

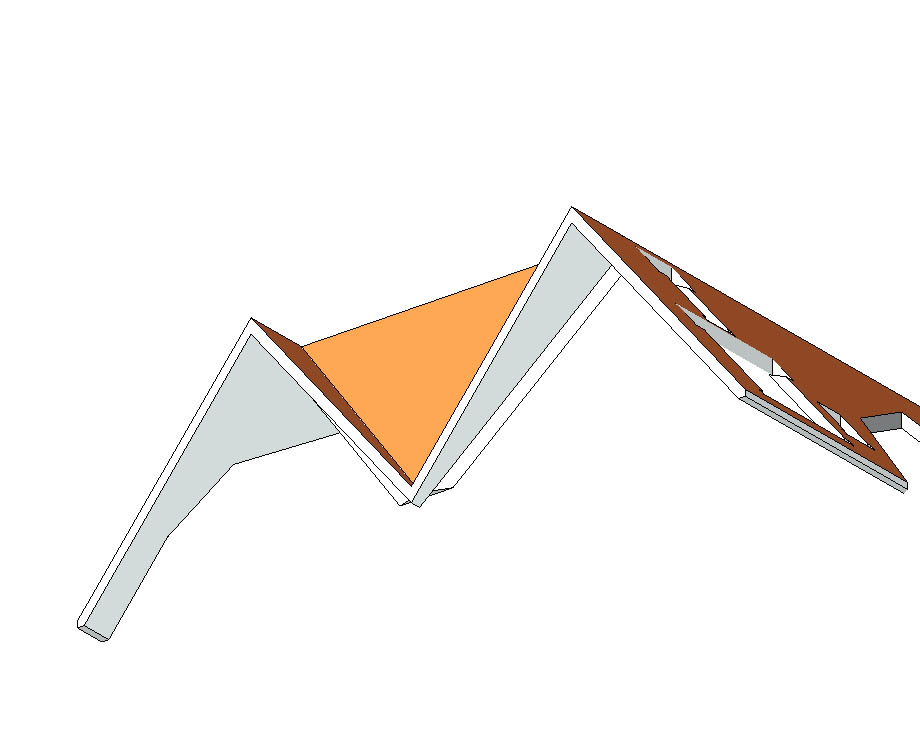

its kinda hard to get a good angle on it to make it clear, but hope this helpsEdited on: Fri, Dec 19, 2008 at 6:41:28 AM

Edited on: Fri, Dec 19, 2008 at 6:42:09 AM

Attached Images


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Fri, Dec 19, 2008 at 6:42:37 AM | roofs with different angle

#6

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes




Attached Images


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Fri, Dec 19, 2008 at 6:55:55 AM | roofs with different angle

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Well, did you use "Join/Unjoin Roof"??? That edge its a "Footprint" roof or what???




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Dec 19, 2008 at 7:08:31 AM | roofs with different angle

#8

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


the roofs are joined and both are roofs by extrusion.

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Fri, Dec 19, 2008 at 7:14:40 AM | roofs with different angle

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


So if that edge its a extusion roof create a Elevation or Section View and Create-in-place in the same category (roof) a "Void" to "cut" those portions of roof you don't want...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
