Forums >> Revit Building >> Technical Support >> Curved Straight grids - Revit 2009
|
|
|
active
Joined: Tue, Jul 31, 2007
3 Posts
No Rating |

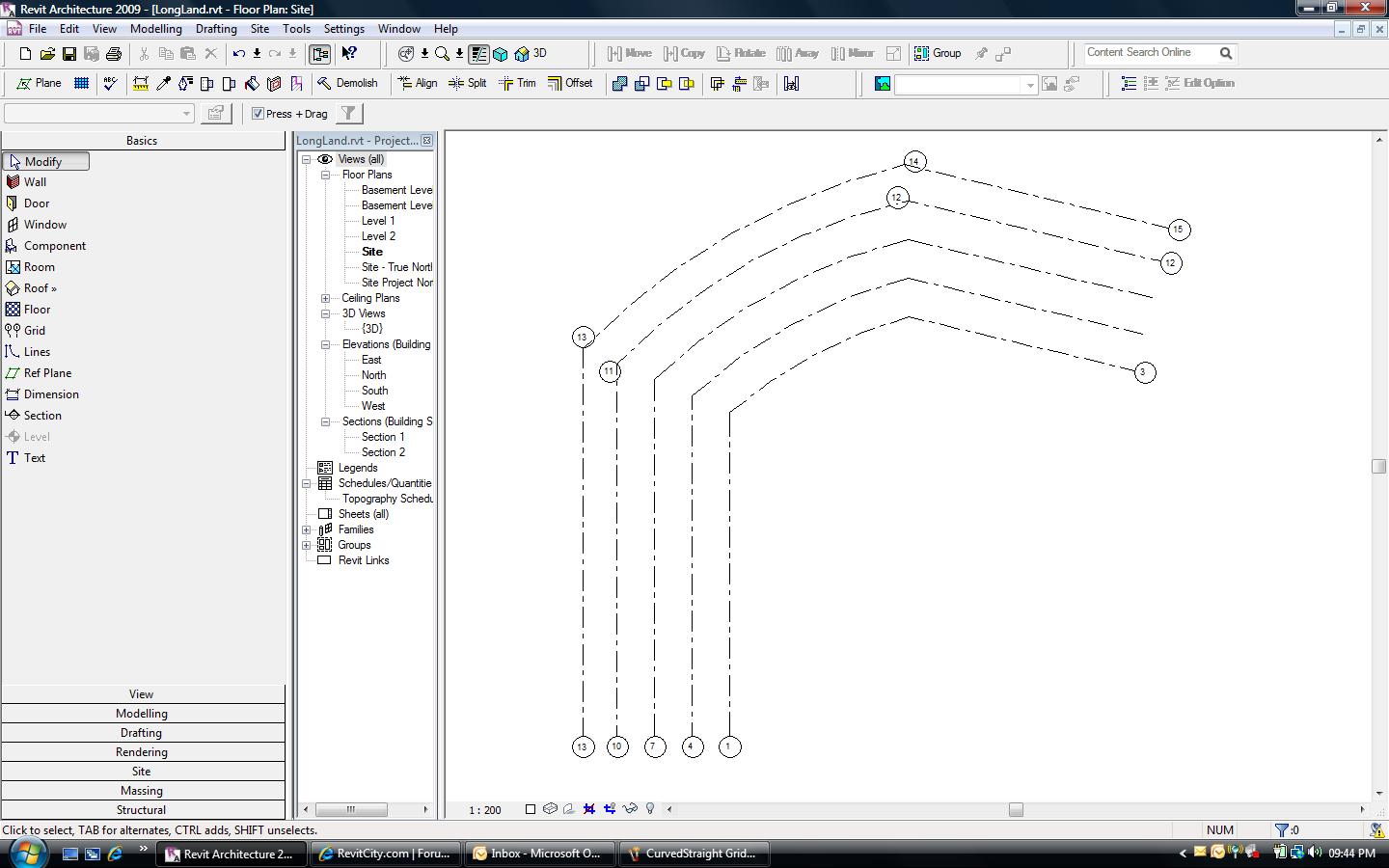

Could someone please tell me how i can go about creating a grid line for a curved building that needs straight sections and curved ones as clearly the grid lines conflict with the existing ones and dont allow renaming with similar numbers. Ive poseted a image of what i have got and need this type of result but i need grid 1 to be numbered on both sides but because the right side is a completedly seperate grid i cant rename it. please could someone help me here as i cant create my own parameter in the grid bubble annotation i dont know what else to try.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
In good drafting practice, you typically would do these as three different segments anyhow. Why don't you name them A1.A2,A3 or As Am Ae or something else that is logical to you.
|
This user is offline |
|
|
|
site moderator|||
Joined: Mon, Jan 12, 2004
2889 Posts
 |
I agree that seems like a good approach. But it would be nice to have them all the same. Its not really possible though.
-----------------------------------
Regards,
Chris.
Co-Founder | BIM Consultant | Software Designer  B. Arch)
Xrev Revit API Addins | Revit Rants |
This user is offline |
View Website
|
|
|
