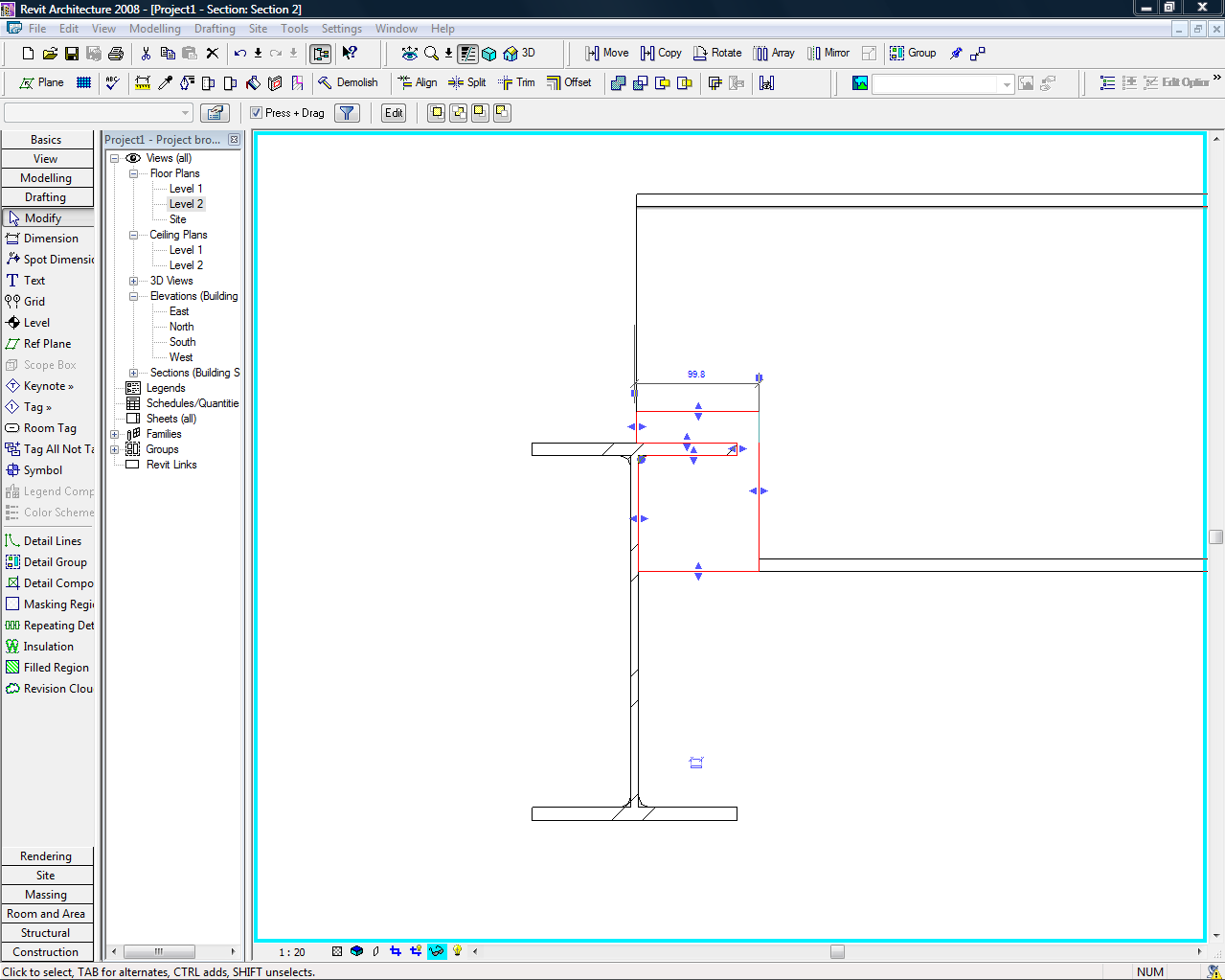

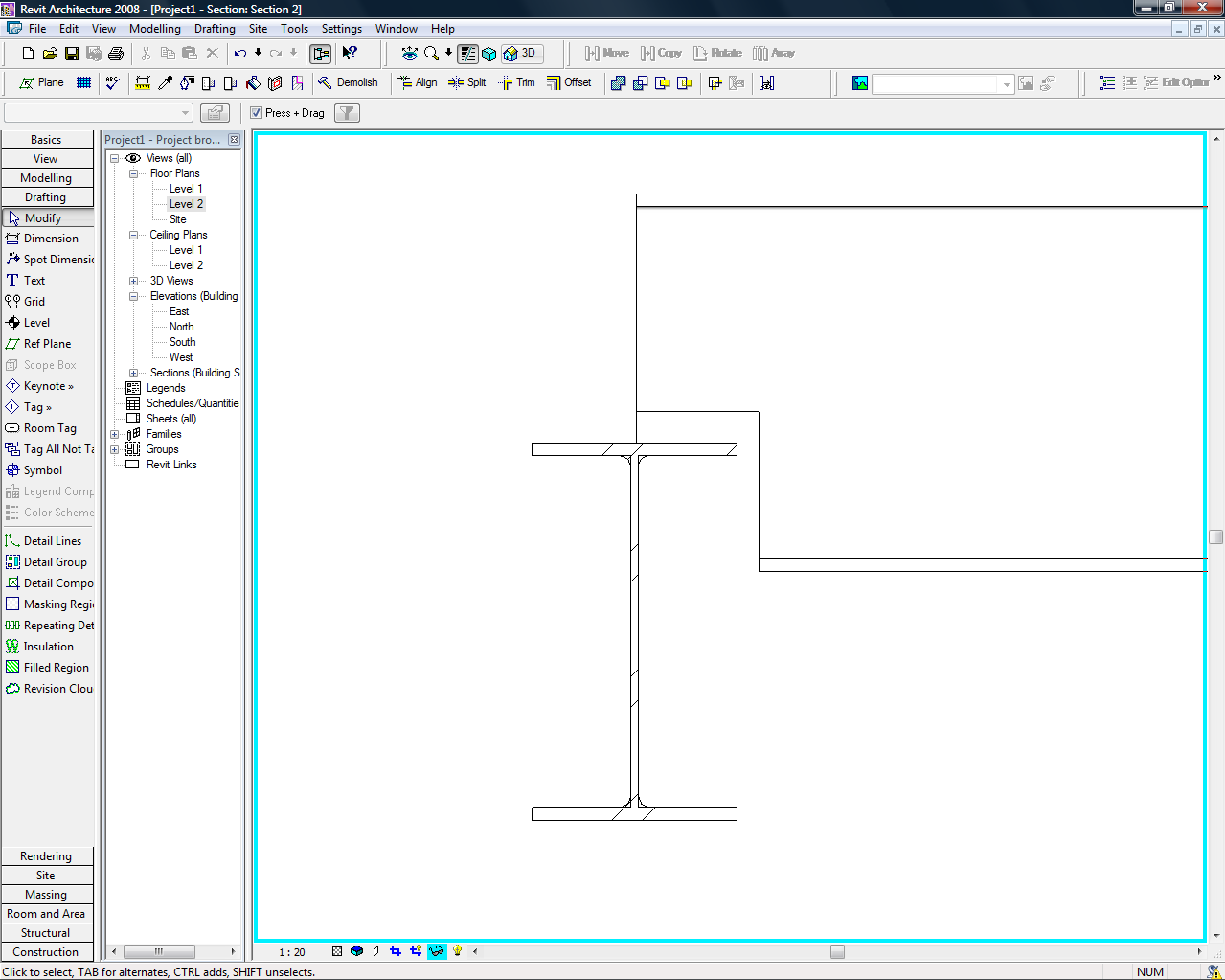

Any help appreciated Please see the attached images I have a beam that I need to notch into another beam in detail only. I have tried using a masking region however this also covers the main 838UB beam as well. Is there any form of draw order control in Revit? How would this detail be best achieved please?
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |

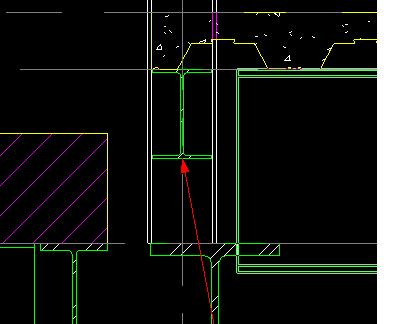

Hi, i use the Masking Region like you can see in the images attached and it works, if that's what do you want?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
You can either do as Typhoon suggests or simply add linework over top of the beam being cut - add your cut and then hide the beam in view. If you use the masking region, change your masking sketch lines to invisible-heavy-light as appropriate.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Wed, Apr 30, 2008
21 Posts No Rating |
Thank you very much for the replys. Thats really helpful. :-)
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![Typhoon Avatar](user_avatar/34560.jpg)
Joined: Tue, May 22, 2007
5921 Posts
![4 Stars: 201 Votes](/images/stars_4.gif) |
You welcome...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Wed, Apr 30, 2008
21 Posts No Rating |
The other suggestion that I had by the way was to use the coping tool from TOOLS > COPING. It seems to work however it has a tendancy to cut a beam in such a way that it would not be done in reality.
|
