Forums >> Revit Building >> Technical Support >> Axo/3D section cut
|
|
|
active
Joined: Wed, Aug 29, 2007
417 Posts
 |
Is there a way to show a 3d axonometric Section Cut? Thanks, Lorne
-----------------------------------
AutoDesk Revit Certified Professional
Denver, CO
Revit Architecture |
This user is offline |
|
 | |
|
|
active
Joined: Thu, Dec 13, 2007
135 Posts
 |

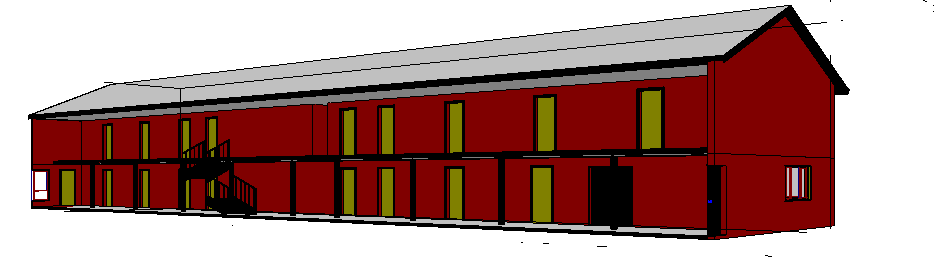

Hey, do you want it to look like this?
-----------------------------------
- Core 2 Duo E8400 3ghz
- 756mb Nvidia 9600GSO 256bit
- 6gb Kingston RAM 800mz DDR2
- Windows XP Service Pack 3 32-bit
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Go to VP then select "Section Box" then adjust Top, Bottom, left and right like do you want.
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Thu, Dec 13, 2007
135 Posts
|
Creating a 3D Section in Revit
Here are the easy steps that will allow you to create this view: - Have a model created from which you can create a section and 3D view perspective.
- Using the default 3D view that is in the project browser create a duplicate of this view. Select the view then use the secondary mouse button to “Duplicate”
- Select the new Copy of the view created and using the secondary mouse button rename the view.(ex: 3D Axonometric View)
- Go to a plan view to create a new Section for a particular part of the model. (ie: Building Section, Wall section)
- Rename the section (ie: Axonometric Section) in the same manner that the 3D view was renamed.
- Make the 3D Axonometric view in the project browser active by double clicking the name in the project browser.
- Go to the View pull down menu and select “Orient” → ”To Other View” tool.
- Select the name of the section that was just created from the “Orient to Other View” dialogue box.
- The new active view will look just like the section view that was created before; the biggest difference will be when you select the “Dynamically Modify View tool” and select the Shift Key and hold down the scroll wheel on your mouse.
- This will activate the rotate command and now you will see the section created from an axonometric view perspective.
I cant take credit for this - The Mad Cadder used this on his website
-----------------------------------
