Forums >> Revit Building >> Technical Support >> Combining Wall reveal and sweep
|
|
|
active
Joined: Wed, May 23, 2007
3 Posts
No Rating |
Hi all, Does anyone know a way to combine wall sweep and reveal? Meaning, a profile which projects out and cut into the wall at the same time? Please advise. Thanks! I'm using Revit Architecture 2009.
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Nov 7, 2006
456 Posts
 |
I'm not sure what you mean? can you post a screenshot? You can do a wall with built-in sweep and reveal, under its properties. You can also add them manually by Host sweep, Wall reveal or wall sweep.
-----------------------------------
Motto: "No Post left behind" |
This user is offline |
|
|
|
site moderator|||
Joined: Mon, Jan 12, 2004
2889 Posts
 |
For Wall sweeps there is also an option for "Cut wall" too. HTH.
-----------------------------------
Regards,
Chris.
Co-Founder | BIM Consultant | Software Designer  B. Arch)
Xrev Revit API Addins | Revit Rants |
This user is offline |
View Website
|
|
|
active
Joined: Wed, May 23, 2007
3 Posts
No Rating |
Thank you for your replies. I guess there isn't a way to combine the two into one profile. The two pictures show what I was trying to do:"Sweep-highlighted.gif" shows the sweep highlighted, you can see there's a 2" thickness which I wanted to cut inside the wall."Sweep1.jpg" shows the sweep applied to the wall, but the wall was not cut. Thanks again!
|
This user is offline |
|
|
|
active
Joined: Tue, Nov 7, 2006
456 Posts
|

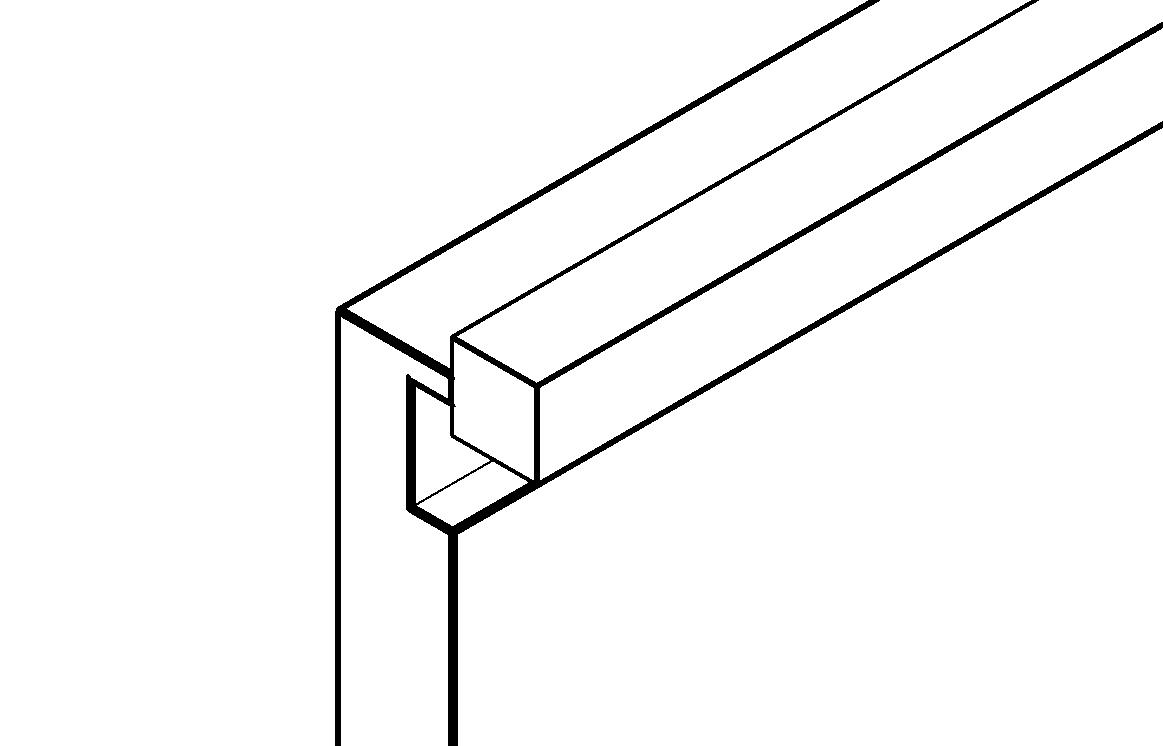

I see what you mean. The attached image has a top wall sweep and the recess is a wall reveal.
-----------------------------------
Motto: "No Post left behind" |
This user is offline |
|
|
|
