Good morning! This may be a stupid question, but it would be like Revit not to allow us to get this custom. I have all of my details drawn in AutoCAD and imported into Revit. I've set up the sheets & Drafting Views for each on of my details. Now, some of my details are not drawing to scale, so I would like to put "NOT TO SCALE" in the title of the drafting view. Also, we put "NOT USED" for blank detail boxes... which obviously do not have a scale. Can we make the scale in the view title blank or "NOT TO SCALE"? Just a side note, I tried to go into the custom scale in the drafting view and make it blank or add the text. It wouldn't allow me to do that. Thanks in advance for your help. Mike
|
This user is offline |
|
 | |
|
|
active
Joined: Mon, Feb 12, 2007
51 Posts
 |
When we do this we put a text box with "Not to Scale" and place it over the view scale area of the view title. That way it covers it up and prints out as though it is part of the view title.
-----------------------------------
stanmpd
Belz A&C
Memphis, TN |
This user is offline |
View Website
|
|
|
active
Joined: Tue, Oct 9, 2007
50 Posts
No Rating |
Great idea... thanks. I can't believe there are still so many basic drafting principles that Revit doesn't support (A descent spreadsheet would be nice too). It seems like there is a lot of time spent trying to find work-arounds. Hopefully the next version will finally address some of these issues. Thanks again for your help! Mike
|
This user is offline |
|
|
|
active
Joined: Fri, Jan 11, 2008
16 Posts
No Rating |
Mike, As you have set up your sheets & Drafting Views for each on of your details, I am curious if your Revit file, once you build your model on a given project, will be bogged down. I am importing (linking) all of my typical details individually to drafting views as well and I am worried about slowing down my Revit file once my model is built. Your thoughts are appreciated. Chazbo
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, Oct 9, 2007
50 Posts
No Rating |
I actually did it a little different. I created all of my details together into one AutoCAD file and imported one file into Revit. I made 4 dependent copies in revit for the 4 different sheets. I then created all the different drafting views for each of the details. Now there is a litttle work-around the get the drafting views blank. When you first make the view, draw a detail line in the view. Then you can drag the detail view onto your sheet... then erase the line in your detail view. I haven't had any problems with revit slowing down any more than before I put in the details... and I have about 75 drafting views. I hope this makes sense. For me, it seems to be working out really well... especially Revit (in my opinion) is terrible with drawing details.
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 13, 2007
135 Posts
|

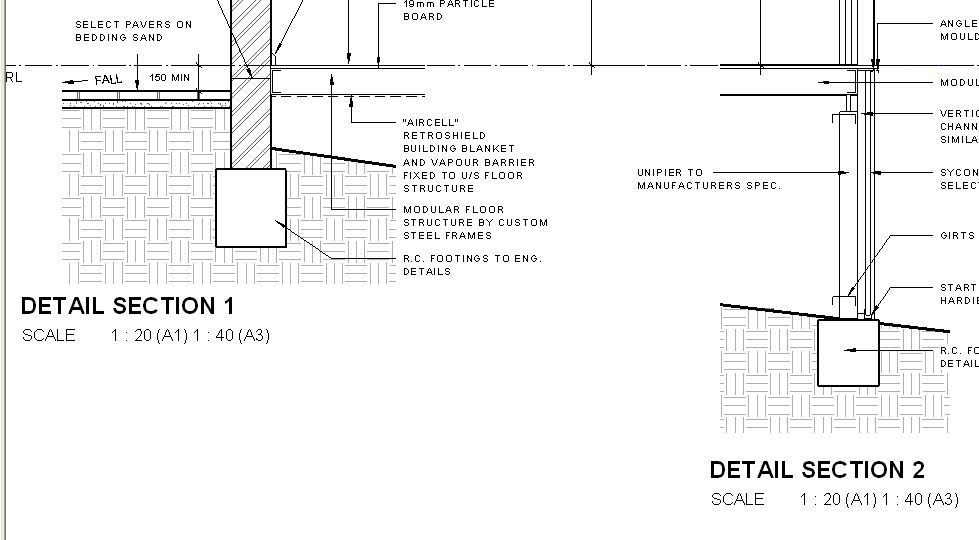

Hey, you could create a view port title with the annotations of "Not to scale" or "Not used". Instead of creating a label where the scale goes, you could put text with your desired annotations instead. That way, for every view that isn't to scale, you are able to have the view name correct, and the annotation under it as required. I use this all the time, as I create generic viewport titles called "1:50 (A1)". I create a view reference that has the annotation "scale 1:50 (A1) 1:100 (A3), and for every viewport that is at 1:50, I apply my generic view tag to it.
-----------------------------------
