Forums >> Revit Systems >> Technical Support >> My bump lines are too thick and heavy.
|
|
|
active
Joined: Tue, Jan 26, 2016
0 Posts
No Rating |
I actually tried making the tile as an individual floor and then laying it out in the pattern. It's really complicated to get the tiles to line up perfectly. See attached photo.
I don't know how to insert an individual image onto a floor. Unless I would "split face the floor" like a million times.
|
This user is offline |
|
 | |
|
|
active
Joined: Mon, Aug 6, 2012
0 Posts
 |
now I'm really curious...can you post the images you using? It looks like you got 2 materials defined; one for the main floor tile and one for the floor's tile insets.
|
This user is offline |
|
|
|
active
Joined: Wed, Aug 19, 2015
0 Posts
 |
I forgot about the in-Revit crop when setting up materials. Usually do it in photoshop as it is much more precise.
|
This user is offline |
|
|
|
active
Joined: Mon, Aug 6, 2012
0 Posts
|
Agreed. Photoshop is where my images begin as well. I try to get it perfect there before bringing the image into Revit.
|
This user is offline |
|
|
|
active
Joined: Wed, Aug 19, 2015
0 Posts
|
Just worked this up in revit. didnt know exactly what size tile you wanted and since the image you provided was square and herringbone needs rectangle i just used used half the image width and croped at good looking section.
Noticed one of the split tiles was rotated wrong
Edited on: Thu, Aug 11, 2016 at 2:25:53 PM
Edited on: Thu, Aug 11, 2016 at 2:26:22 PM
Edited on: Thu, Aug 11, 2016 at 2:26:51 PM
|
This user is offline |
|
|
|
active
Joined: Wed, Aug 19, 2015
0 Posts
|

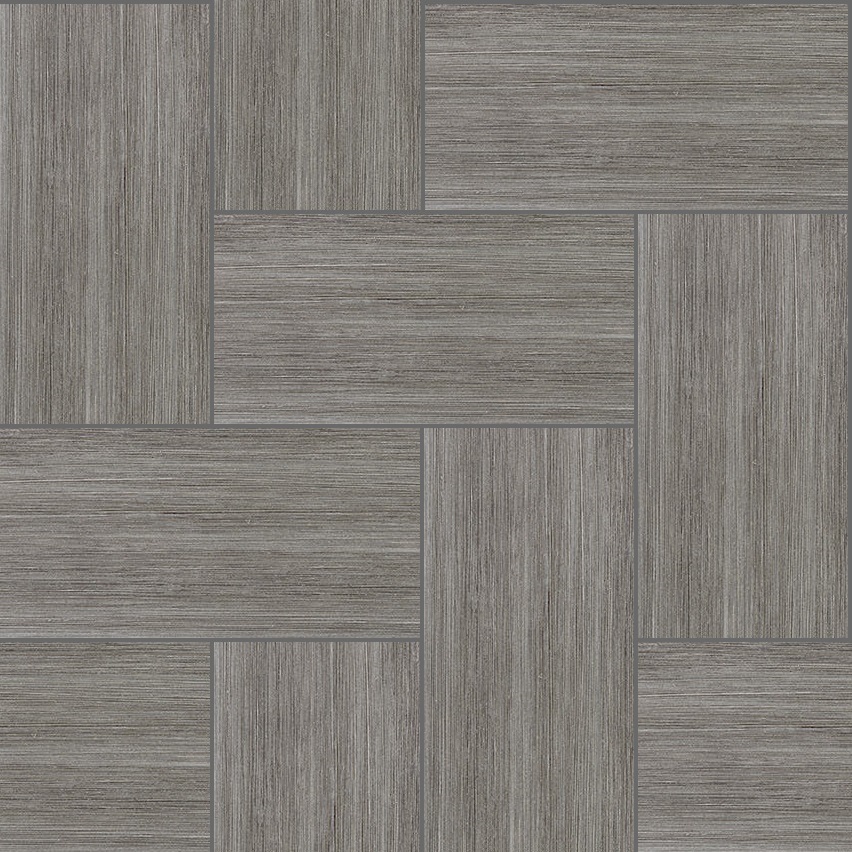

Previous post doesnt seem to reuploading the right image. this is the corrected one
|
This user is offline |
|
|
|
active
Joined: Mon, Aug 6, 2012
0 Posts
|

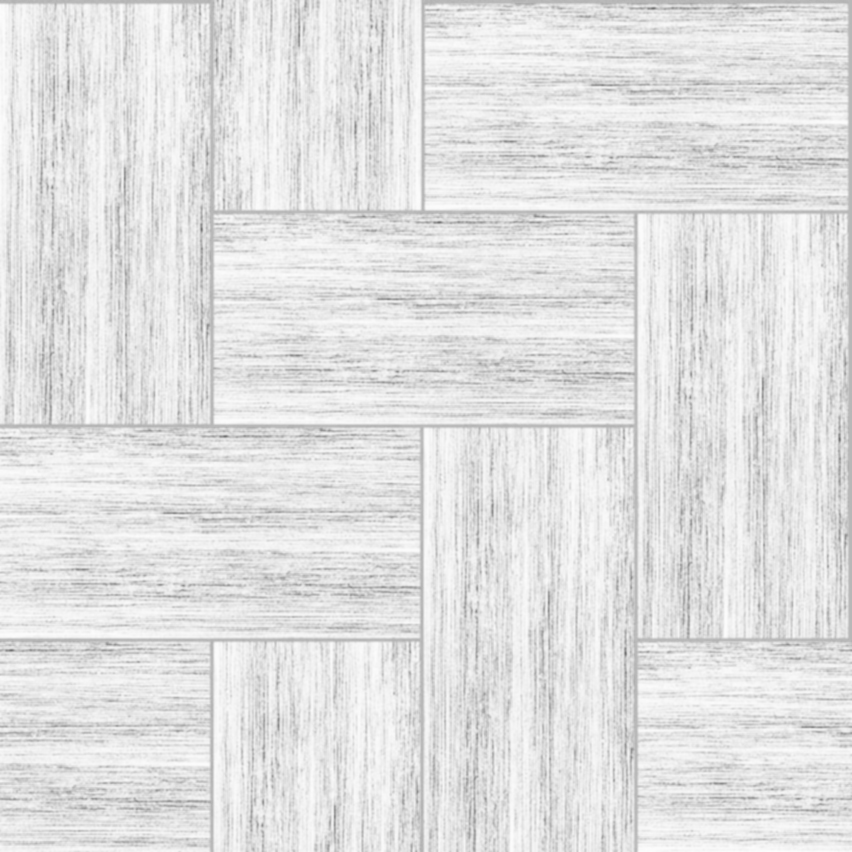

Here: try this image for your Bump, using the exact same image settings as your colored image. If it doesn't improve the grout lines the way you like, load your original image into Photoshop and convert it to Grayscale and mess around with Bright and Contrast and Blur to try to get those grout to stand out a bit better. You might even overlay this bump with a relief. But, aside from that, it's going to require some fine tuning work - more than I can offer. Good luck.
...you might even explore using another colored image. I can see that it's going to be challenging with this one; not enough contrast.
Edited on: Thu, Aug 11, 2016 at 2:51:13 PM
|
This user is offline |
|
|
|
