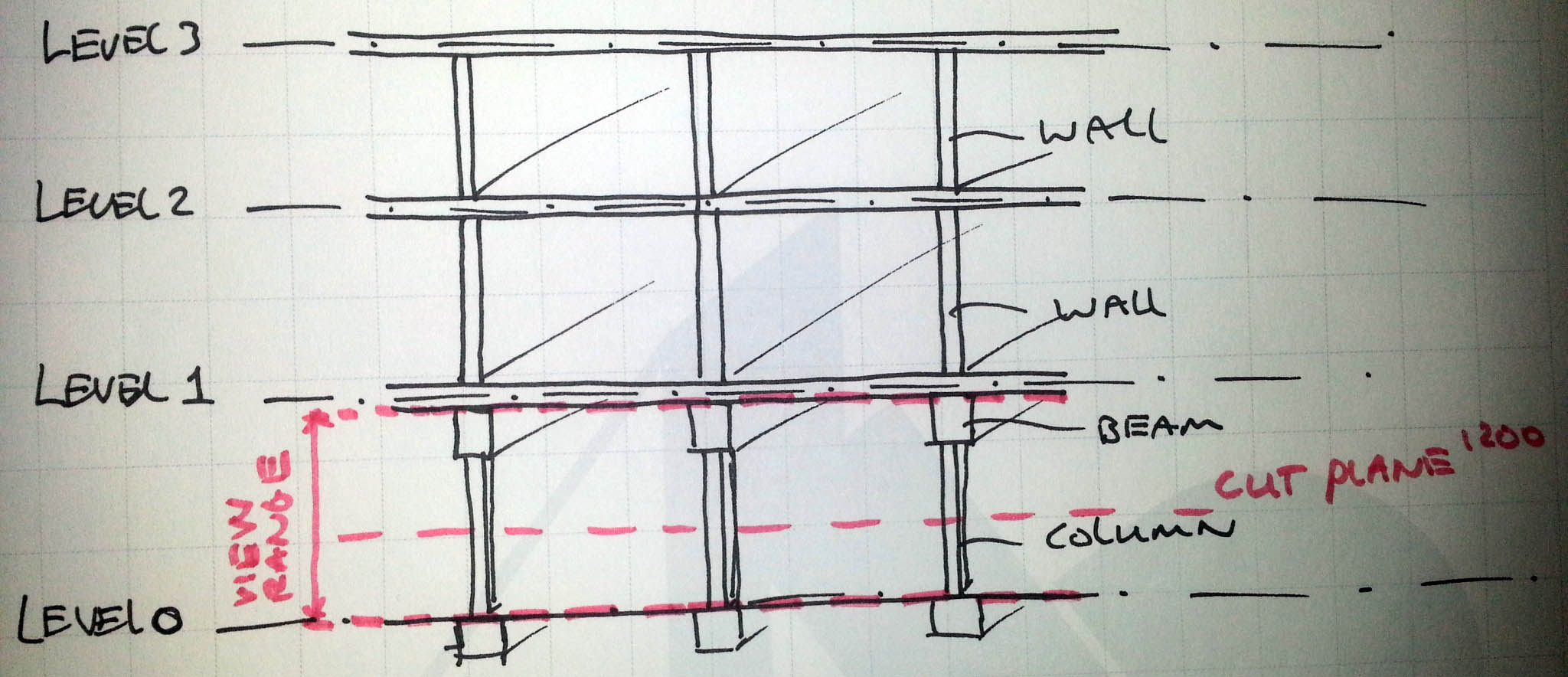

Look at the attached file. I did sketch my situation. Hope it helps.

Attached Images

This user is offline

CDWdavid

active

Joined: Mon, Aug 4, 2008
153 Posts

Hi 10456,

Are you saying that while you are working on level 0, you want to see beams undernearth level 1, as in ceiling plan view?

If that's the case, you can place your cut plane at 3600, if the buttom of beams at 3500, top of beams at 4000.

Then change the structural framing line type to dashed and line color to red, for easy to read. This way you can work on level 0, at the same time see the beams. After you placed walls, change cut plane to 1200, then you can see all doors and windows.

This user is offline

1045642112

active

Joined: Sun, Mar 22, 2009
28 Posts
No Rating

Hi David,

Yes, that's what I mean. The link I earlier gave with the video was about how to achieve this permanently. The way you tell me is actually the same idea. I did temporarily change the cut plane to see the beams. After that I did change the linework, like you said. I did set the cut plane back to normal and voila! I can see the beams in my normal (coordination) view with all doors and windows available.I even never have to change cut plane again to 3600, because now with 1200 I still can see the beams and even move them Does everybody use this method because they encounter this problem? Or is it just me? That would be strange...

This user is offline

Dgodfrey

active

Joined: Mon, Jul 4, 2005
137 Posts

You're not the only one exasperated with this problem. I too had issues with the display rules concerning structure. I use Revit primarily for residential however the developers focused on the needs of "commercial architecture" therefore viewing the structure above is not the norm. The best solution is to open your beam family and "create" a model line (structural framing-projection) extending from the bottom of the beam for about 6' in length. Re-load and place beam at proper height and as long as the "cut plane" hits this new model line extending below the beam, it should be visible. I think this is what the poster a few threads back was trying to explain but I too couldn't open his file to confirm.

This user is offline

DESIGN4BUILDING

active

Joined: Sun, Jul 2, 2006
54 Posts

if you draw your beam on level 3, i set view depth about -12" and bottom the same BUT you might have the detail level set at CORSE. change to FINE to see beam option is lower left of screen....

This user is offline

View Website

Manny

active

Joined: Tue, Apr 24, 2007
104 Posts

this is very simply, change your view discipline from architectural to coordination.

This user is offline

1045642112

active

Joined: Sun, Mar 22, 2009
28 Posts
No Rating

@ Dgodfrey:

That's really a good one, but I had problems drawing that one, because I couldn't get the lines showing up in view. But, that's my problem, I will try it again and post the result.

@ design4building:

The detail level is not the problem. I did rape that button

@ Manny:

I did rape that button too That's really not the problem

This user is offline

1045642112

active

Joined: Sun, Mar 22, 2009
28 Posts
No Rating

Hi Dgodfrey,

I did try it again. That method is really not working here.

I attached my model (revit 2013) with the beam in it.please look at it if you can and tell me if you see any settings wrong...

thank you,

Sef

This user is offline

1045642112

active

Joined: Sun, Mar 22, 2009
28 Posts
No Rating

Here is the file, you can download it (2,5 MB)

https://www.dropbox.com/s/yt7aqigkpdqsvix/BEAM%20project.rvt

This user is offline

samisami9

active

Joined: Tue, May 6, 2014
0 Posts
No Rating

This is an old thread but I was having problems with seeing the actual concrete beam in an RCP. It ended up being a super-simple fix (isn't it always?) that required the following:

In your Properties dialog box for the view change "Show Hidden Lines" to "All". If you have a view template set up, then change it in there.

This user is offline

sllana

active

Joined: Wed, Mar 2, 2011
106 Posts

Have you tried structural plan?

This user is offline
