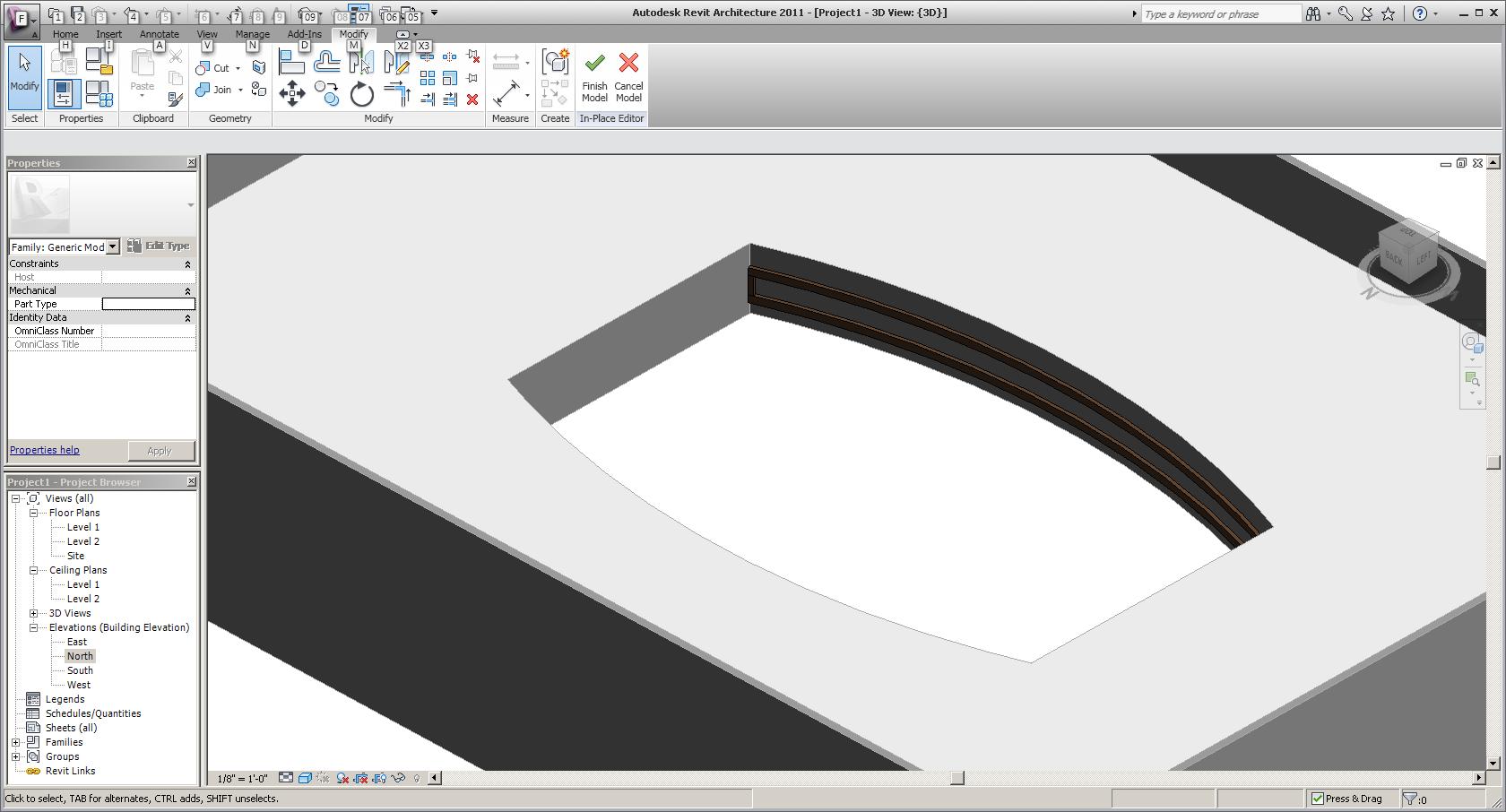

I've created arches by modeling-in-place a solid extrusion for an archway. Now I need to apply molding on the ceiling face, & am attempting different ways to go about it, but nothing has worked. I've got the molding on the side walls, but lose them when attempting to do the same to the ceiling while working in 3D. I've attached a picture. Anyone out there with helpful hints? Susan
|
This user is offline |
|
 |
|
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
whoops... using R2011
|
This user is offline |
|
 |
active

Joined: Wed, Mar 5, 2008
208 Posts
 |
Susan, Like i mentioned on other thread, i think the effective way is to model an in-place molding (although I would tackle it by using a loaded family, in this case, you only have to do it once) The key is to set up a workplane first before you start to model the in-place molding under the curve ceiling
|
This user is offline |
|
 |
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
I think that is my problem.... The work plane. I guess I forgot how to make a curved one!
|
This user is offline |
|
 |
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
Nope. Can't seem to get a reference plane to curve.... Any hints here?
|
This user is offline |
|
 |
active

Joined: Wed, Mar 5, 2008
208 Posts
 |
I don't mean to create curve reference plane, I meant to say to set up a ref plane adjacent to the curve ceiling and use it as a work plane. I am kind of tied up now but will likely to upload something later on. Philip
|
This user is offline |
|
 |
active
Joined: Thu, Feb 18, 2010
26 Posts No Rating |
Can't you just create a profile family, use model in-place, use sweep, and use pick lines, and use pick 3D lines? I did it in one of my project recently when I had a curve wall going up to a curved roof.
----------------------------------- Revit Architecture 2011 Certified Professional |
This user is offline |
|
 |
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
Thank you both! I think that I was over-thinking this... and adding in an extra step. What you described is likely what I've already done, I'm just trying to complicate my work experience! Ta! S.
|
This user is offline |
|
 |
active

Joined: Wed, Mar 5, 2008
208 Posts
 |
I don't mean to create curve reference plane, I meant to say to set up a ref plane adjacent to the curve ceiling and use it as a work plane. I am kind of tied up now but will likely to upload something later on. Philip
|
This user is offline |
|
 |
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
Nope. Can't make it work. I can't pick the 3D face (which is curved). Setting the sweep path along the reference plane which is parallel to my curved surface doesn't work either. There must be another option?
|
This user is offline |
|
 |
|
active

Joined: Wed, Mar 5, 2008
208 Posts
 |
Did you mean this is what you want to do? You have to do it as a separate piece, the hozs are done by sweep picking 3D edge. and then vertical can be either extrusion/sweep and use join geometry afterward HTH Philip
|
This user is offline |
|
 |
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
That's EXACTLY what I'm after... wow. Thank you SO MUCH.... I ought to be able to figure it out now. You're a god-send! Susan
|
This user is offline |
|
 |
active

Joined: Wed, Mar 5, 2008
208 Posts
 |
You are welcome
|
This user is offline |
|
 |
active
Joined: Mon, Jan 17, 2011
97 Posts No Rating |
Okay, well.... I spoke too soon. I want to get the vertical bits 2" from the ends. I've got the horizontals in, the verticals in, but can't get them to join geometry. I bet it has something to do with my vertical placements? If they don't all line up perfectly on the curve, they won't join? (I really like to know the reason something does/doesn't work, so that I can figure these things out eventually! Is there a good book about these intricate little tricks????)
|
This user is offline |
|
 |
active

Joined: Wed, Mar 5, 2008
208 Posts
 |
You are correct. IN your case, I'd say it takes a bit of trial and error to make sure the hoz and vert lined on the same plane (think of it in reality of how the molding would be done) and you should be able to join them together. lots of time, think of what you are modeling related to how it will be constructed in real life, then try to use the same concept to apply to your model and it will work. Philip
|
