Fri, Jul 31, 2009 at 12:59:23 PM | Custom Elbow Fitting

SacModeler

active

Joined: Thu, Oct 18, 2007
3 Posts
No Rating

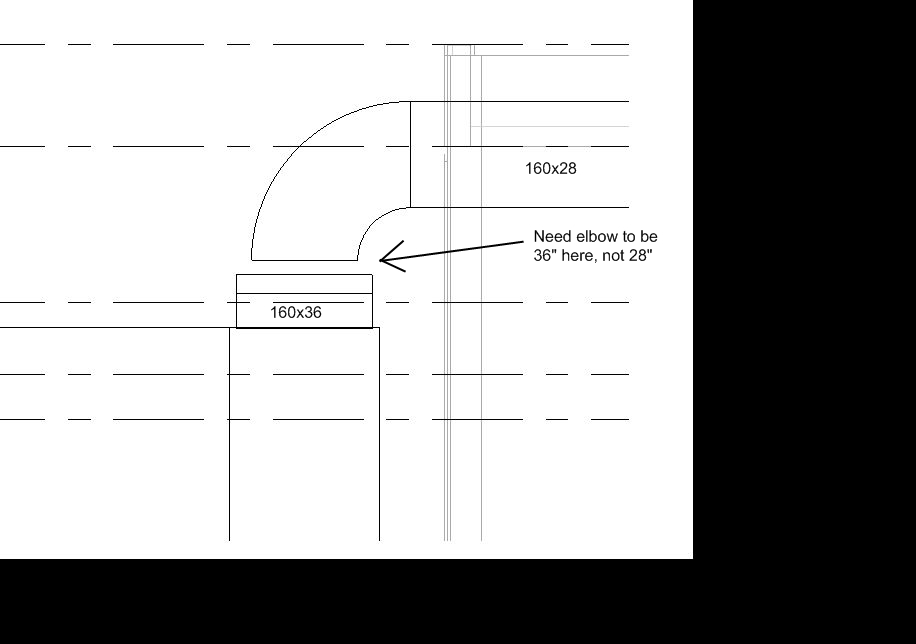

I am trying to create a custom radius duct elbow where one end connects to a 160" x 36" duct and the other end connects to a 160" x 28" duct. (See attached section view)

Can anyone help me with this??

Thanks!

Jess

Attached Images

-----------------------------------

Jess JonesSacModeler

This user is offline

Sun, Aug 23, 2009 at 3:20:48 PM | Custom Elbow Fitting

dgcad

active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes

Use the 'sweep blend' tool to model the duct elbow instead of just 'sweep'. Profile 1 is 160 x 28 Profile 2 is 160 x 36. Use the middle center of the arc as the 'Path'. Then add your 'connectors'. You can also nest 'Profile families' to optain the option to change the two different openings via 'types'.

-----------------------------------
