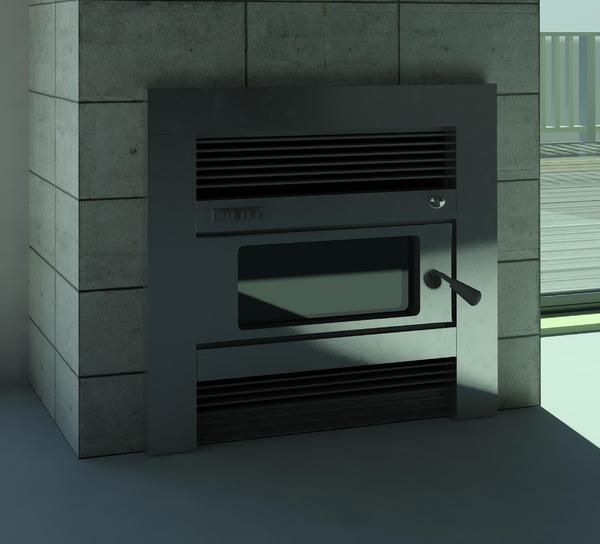

NZ local content of a Pioneer Manufacturing Ltd proprietary solid fuel burner  (20kw output) with optional wetback module ( not included).

This family has Yes/No parameters for the upper ECO flue base kit,  the 3 lower flue sections - 150 mm, 200 mm, 250 mm  and Yes/No parameter for the optional Floor Protector sheet including width and length parameters for the protector sheet.

The flue sections are instance parameters for height so have grips for on the fly / interactive height adjustment. The upper ECO flue base kit (nested family) has type parameters for some length sections while some are deliberately fixed segments.

Some sub categories assigned for various flue sections.

Materials parameters are assigned for inner flue, fascia panel, louvre blades, glass inset panel, door handle shaft and knob.

There is some information current at this date included in the family such as URL , NZ Keynotes (the CBI system/format and the like. The family is a wall hosted family and has the manufacturer recommended installation clearances from firebox to wall built into the family.

As usual, use at own risk- enjoy
